多线程-Part06

本章节主要介绍ReentrantLock的可重入，可打断，锁超时，公平性等相关的知识点, 并且举了两个例子来演示ReentrantLock的用法。

可重入

定义

代码

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_1")
public class ReentrantDemo_1 {
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        lock.lock();
        try {
            log.debug("entered main");
            m1();
        } finally {
            lock.unlock();
        }

    }

    private static void m1() {
        lock.lock();
        try {
            log.debug("entered m1");
            m2();
        } finally {
            lock.unlock();
        }
    }

    private static void m2() {
        lock.lock();
        try {
            log.debug("entered m2");
        } finally {
            lock.unlock();
        }
    }
}

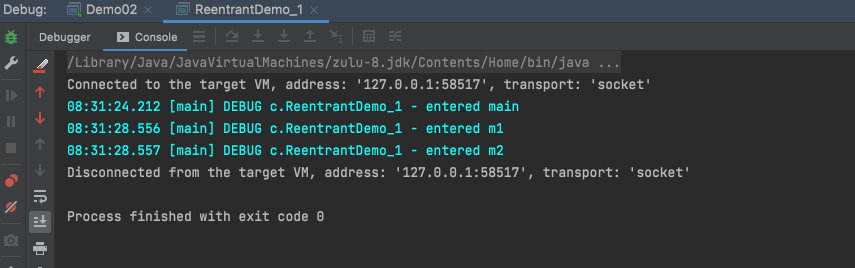

测试

确实可重入，并且finally也是按倒序先执行m2的，再执行m1的finnaly 最后main的finally释放锁。

可打断

定义

代码

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的可打断特性
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_2")
public class ReentrantDemo_2 {
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        Thread t1 = new Thread(() -> {
            try {
                //如果没有竞争， 此方法就会获取lock对象的锁
                //如果有竞争就会进入阻塞队列。可以被其他线程用interrupt方法打断
                log.debug("尝试获取锁");
                lock.lockInterruptibly();
            } catch (InterruptedException e) {
                e.printStackTrace();
                log.debug("没有获取到锁，返回");
              	return;
            }
            try {
                log.debug("获取到锁");
            } finally {
                lock.unlock();
            }
        }, "t1");
        t1.start();

    }
}

上面的代码是t1线程没有被其他线程打断，执行能正常输出：

1 2	09:39:09.375 [t1] DEBUG c.ReentrantDemo_2 - 尝试获取锁 09:39:09.376 [t1] DEBUG c.ReentrantDemo_2 - 获取到锁

改造代码添加打断的逻辑：

改造一：加了打断

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的可打断特性，加了打断
 * 改造一： 加了打断
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_2")
public class ReentrantDemo_2 {
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        Thread t1 = new Thread(() -> {
            try {
                //如果没有竞争， 此方法就会获取lock对象的锁
                //如果有竞争就会进入阻塞队列。可以被其他线程用interrupt方法打断
                log.debug("尝试获取锁");
                lock.lockInterruptibly();
            } catch (InterruptedException e) {
                e.printStackTrace();
                log.debug("没有获取到锁，返回");
                return;
            }
            try {
                log.debug("获取到锁");
            } finally {
                lock.unlock();
            }
        }, "t1");
        lock.lock();
        t1.start();

        Sleeper.sleep(1_000);
        log.debug("即将打断t1");
        t1.interrupt();
    }
}

改造二： lock.lockInterruptibly(); 换成lock.lock();

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的可打断特性
 * 改造二： lock.lockInterruptibly(); 换成lock.lock();
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_2")
public class ReentrantDemo_2 {
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获取锁");
            lock.lock();
            try {
                log.debug("获取到锁");
            } finally {
                lock.unlock();
            }
        }, "t1");
        lock.lock();
        t1.start();

        Sleeper.sleep(1_000);
        log.debug("即将打断t1");
        t1.interrupt();
    }
}

测试

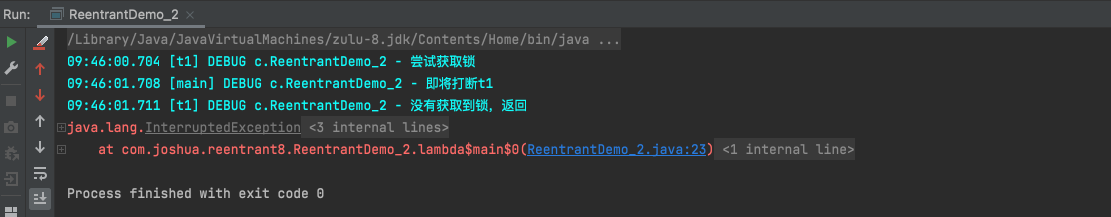

改造一代码执行结果（可打断锁被打断，抛异常）：

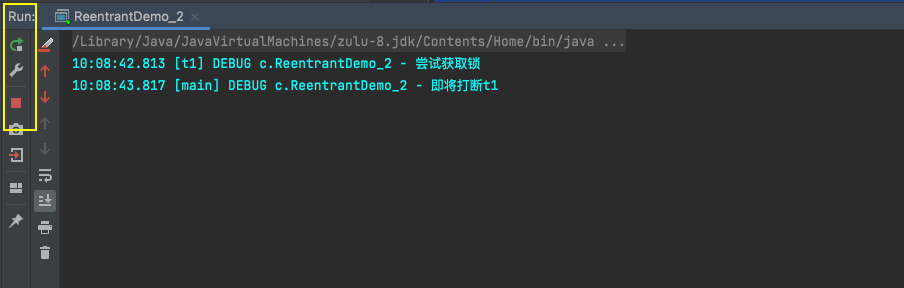

改造二代码执行结果（产生死锁）：

对比改造一和改造二的两点总结：

lock.lockInterruptibly()和lock.lock(); 前者可打断后者不可打断。
可打断锁会允许打断并抛异常，不可打断则容易进入死锁。

锁超时

lock.tryLock() 有几个重载方法，表示超时的参数限制

代码

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.TimeUnit;
import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的锁超时
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_3")
public class ReentrantDemo_3 {
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        t0();
        // t1();
        // t2();
        // t3();

    }

    private static void t3() {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获取锁");
            try {
                if (!lock.tryLock(1, TimeUnit.SECONDS)) {
                    log.debug("没获取到");
                    return;
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            try {
                log.debug("拿到啦～～");
            } finally {
                lock.unlock();
            }

        }, "t1");
        lock.lock();
        log.debug("主线程获取了");
        t1.start();
        //Sleeper.sleep(2_000);
        lock.unlock();
    }

    private static void t2() {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获取锁");
            try {
                if (!lock.tryLock(1, TimeUnit.SECONDS)) {
                    log.debug("没获取到");
                    return;
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            try {
                log.debug("拿到啦～～");
            } finally {
                lock.unlock();
            }

        }, "t1");
        lock.lock();
        log.debug("主线程获取了");
        t1.start();
    }

    private static void t1() {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获取锁");
            if (!lock.tryLock()) {
                log.debug("没获取到");
                return;
            }
            try {
                log.debug("拿到啦～～");
            } finally {
                lock.unlock();
            }

        }, "t1");
        lock.lock();
        log.debug("主线程获取了");
        t1.start();
    }

    private static void t0() {
        Thread t1 = new Thread(() -> {
            log.debug("尝试获取锁");
            if (!lock.tryLock()) {
                log.debug("没获取到");
            }
            try {
                log.debug("拿到啦～～");
            } finally {
                lock.unlock();
            }

        }, "t1");

        t1.start();
    }
}

测试

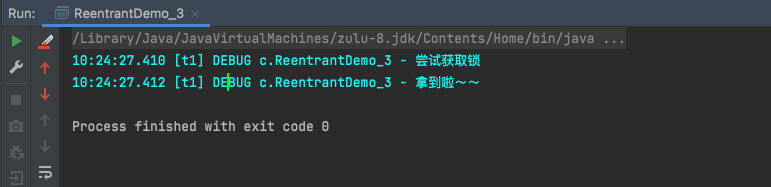

t0测试结果：说明lock.tryLock()是即时生效的。如果获取到，返回true，反之false。

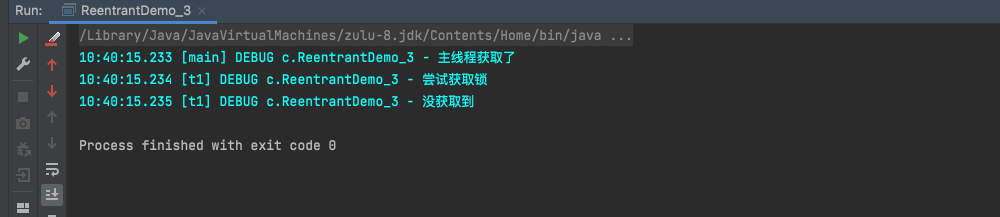

t1测试结果：因为主线程先上了锁且一直没有释放，所以没获取到

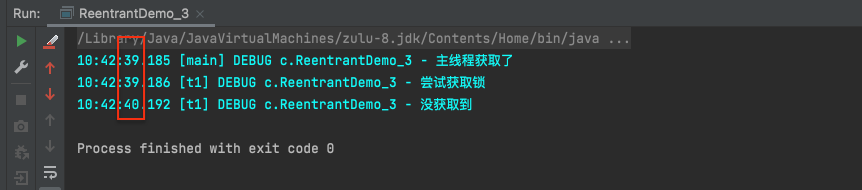

t2测试结果： !lock.tryLock(1, TimeUnit.SECONDS)表明先等1秒，如果1秒之内锁被其他线程释放，则能获取到，则返回true，否则false。

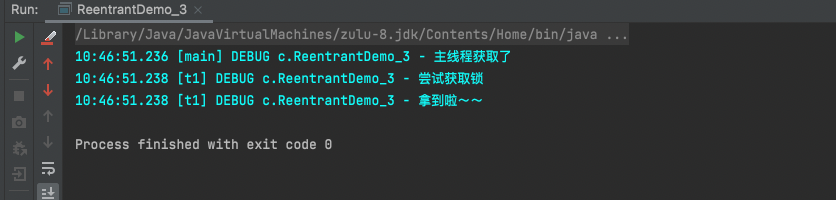

t3测试结果：主线程释放了锁lock.unlock();

//Sleeper.sleep(2_000); 当然如果将t3的注释行打开，那还是获取不到，因为释放锁的时间超过了等待时间。

ReentrantLock解决哲学家就餐问题(tryLock)

代码

package com.joshua.reentrant8;


import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的锁超时解决哲学家就餐问题
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_4")
public class ReentrantDemo_4 {
    /**
     * 在学习锁超时前解决的方式是改变获取锁的顺序， 将最后
     */
    public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        Chopstick c1 = new Chopstick("1");
        Chopstick c2 = new Chopstick("2");
        Chopstick c3 = new Chopstick("3");
        Chopstick c4 = new Chopstick("4");
        Chopstick c5 = new Chopstick("5");
        new Philosopher("苏格拉底", c1, c2).start();
        new Philosopher("柏拉图", c2, c3).start();
        new Philosopher("亚里士多德", c3, c4).start();
        new Philosopher("赫拉克利特", c4, c5).start();
        new Philosopher("阿基米德", c5, c1).start();


    }
}

@Slf4j(topic = "c.Philosopher")
class Philosopher extends Thread {
    Chopstick left;
    Chopstick right;

    public Philosopher(String name, Chopstick left, Chopstick right) {
        super(name);
        this.left = left;
        this.right = right;
    }

    @Override
    public void run() {
        while (true) {
            if (left.tryLock()) {
                try {
                    if (right.tryLock()) {
                        try {
                            eat();
                        } finally {
                            right.unlock();
                        }
                    }
                } finally {
                    left.unlock();
                }
            }
        }
    }

    private void eat() {
        log.debug("双筷在手，开始干饭～～～～");
        Sleeper.sleep(100);
    }
}

@Slf4j(topic = "c.Chopstick")
class Chopstick extends ReentrantLock {
    private String name;

    public Chopstick(String name) {
        this.name = name;
    }

    @Override
    public String toString() {
        return "Chopstick{" +
                "name='" + name + '\'' +
                '}';
    }
}

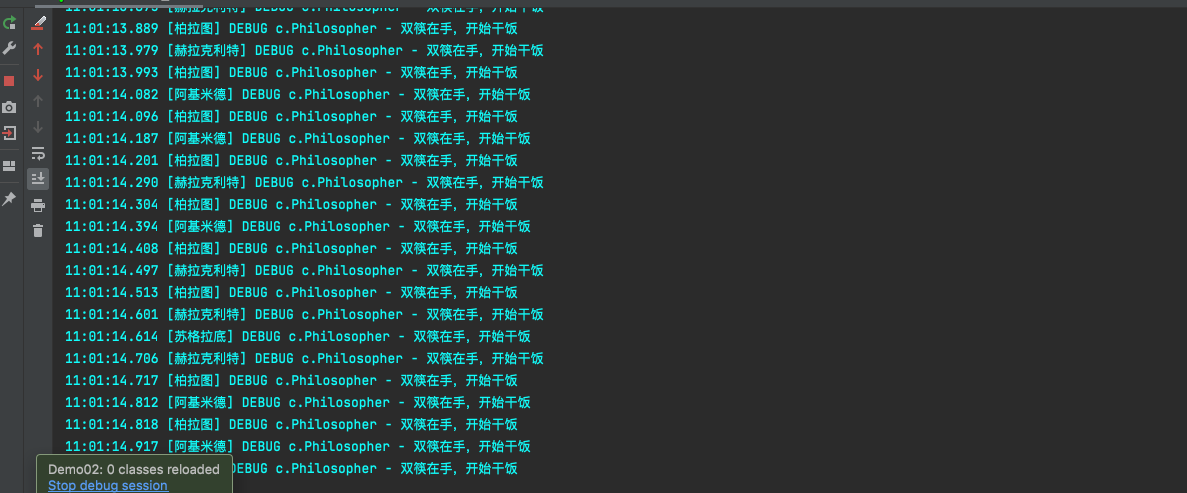

结果

总结

哲学家就餐问题的根本在于大家各持有一只筷子(锁)，等待邻座释放(锁)。那么RenentrantLock的锁超时就可以控制获取不到筷子时将其释放掉。该功能就避免了死锁。而且这种方式优于之前改造加锁顺序new Philosopher("阿基米德", c5, c1).start();的方式。因为不会造成某个线程获取锁机会明显过大(小)的现象。

公平性

ReentrantLock 默认时非公平的，可以通过调用有参构造修改为公平锁。公平锁的意思是会按照进入等待队列的顺序获取到锁资格。

源码掠影

/**
     * Creates an instance of {@code ReentrantLock}.
     * This is equivalent to using {@code ReentrantLock(false)}.
     */
    public ReentrantLock() {
        sync = new NonfairSync();
    }

    /**
     * Creates an instance of {@code ReentrantLock} with the
     * given fairness policy.
     *
     * @param fair {@code true} if this lock should use a fair ordering policy
     */
    public ReentrantLock(boolean fair) {
        sync = fair ? new FairSync() : new NonfairSync();
    }

代码（不是总能复现仅供参考）

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示ReentrantLock的公平性
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_5")
public class ReentrantDemo_5 {
   // public static ReentrantLock lock = new ReentrantLock();

    public static void main(String[] args) {
        ReentrantLock lock = new ReentrantLock();
        lock.lock();
        for (int i = 0; i < 5000; i++) {
            new Thread(() -> {
                lock.lock();
                try{
                    System.out.println(Sleeper.getThreadName()+"running...");
                }finally {
                    lock.unlock();
                }
            }, "t"+i).start();
        }
        Sleeper.sleep(1_000);
        new Thread(() -> {
            System.out.println(Sleeper.getThreadName()+"start～～～～～～～～～～～～～～～～～～～～～～～");
            lock.lock();
            try{
                System.out.println(Sleeper.getThreadName()+"running～～～～～～～～～～～～～～～～～～～～～～～");
            }finally {
                lock.unlock();
            }
        }, "强行插入").start();

        lock.unlock();
    }

}

ReentrantLock lock = new ReentrantLock(fairness); 如果是false，则强行插入强行插入running～～～～～～～～～～～～～～～～～～～～～～～

可能在中间输出，但是改成true之后，则一定在最后输出。不是总能复现仅供参考，后续源码会解释

多条件

使用

代码（对比wait-notify例子）

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;

/**
 * 演示ReentrantLock 来实现之前外卖-等烟 的例子。
 */

@Slf4j(topic = "c.ReentrantDemo_6")
public class ReentrantDemo_6 {
    public static final Object room = new Object();
    private static boolean hasCigar = false;
    private static boolean foodDelivered = false;
    /**
     * 获取锁
     */
    static ReentrantLock lock = new ReentrantLock();
    /**
     * 等烟的条件
     */
    static Condition con1 = lock.newCondition();
    /**
     * 等外卖的条件
     */
    static Condition con2 = lock.newCondition();

    public static void main(String[] args) {
        new Thread(() -> {
            lock.lock();
            try {
                log.debug("有烟没？ [{}]", hasCigar);
                while (!hasCigar) {
                    log.debug("没外卖， 先歇会");
                    try {
                        con1.await();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
                log.debug("有烟没？ [{}]", hasCigar);
                if (hasCigar) {
                    log.debug("可以开始干活了");
                } else {
                    log.debug("没干成活");
                }

            } finally {
                lock.unlock();
            }
        }, "小男").start();


        new Thread(() -> {
            lock.lock();
            try {
                log.debug("外卖送到没？ [{}]", foodDelivered);
                if (!foodDelivered) {
                    log.debug("没外卖， 先歇会");
                    try {
                        con2.await();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
                log.debug("外卖送到没？ [{}]", foodDelivered);
                if (foodDelivered) {
                    log.debug("可以开始干活了");
                } else {
                    log.debug("没干成活");
                }
            } finally {
                lock.unlock();
            }
        }, "小女").start();


        Sleeper.sleep(1_000);
        new Thread(() -> {
            lock.lock();
            try {
                foodDelivered = true;
                log.debug("外卖到了哦");
                con2.signal();
            } finally {
                lock.unlock();
            }
        }, "送外卖的").start();

        Sleeper.sleep(1_000);
        new Thread(() -> {
            lock.lock();
            try {
                hasCigar = true;
                log.debug("烟到了哦");
                con1.signal();
            } finally {
                lock.unlock();
            }
        }, "送烟的").start();
    }
}

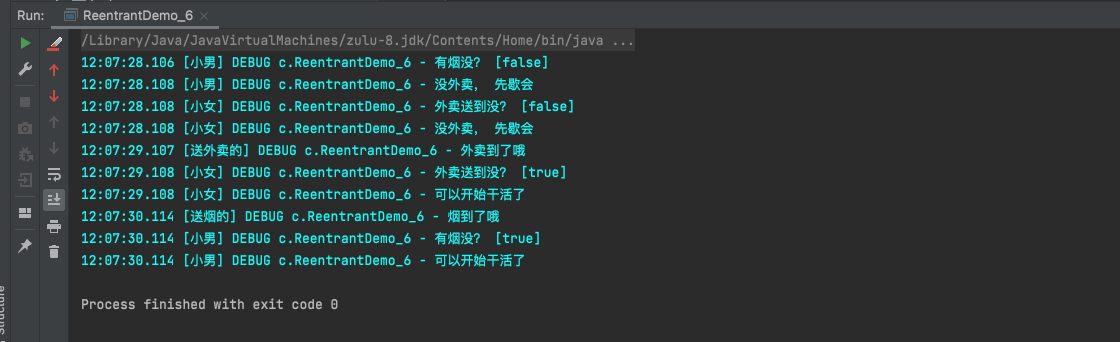

测试结果

Synchronized和ReentrantLock对比

同步模式之顺序控制

假设现在有这样一个场景，两个线程t1和t2分别输出“吃了嘛您？” 和 “吃啦，您呢？”，需要先执行t1,再执行t2。那么为了控制这种先后次序，就有人为干预，

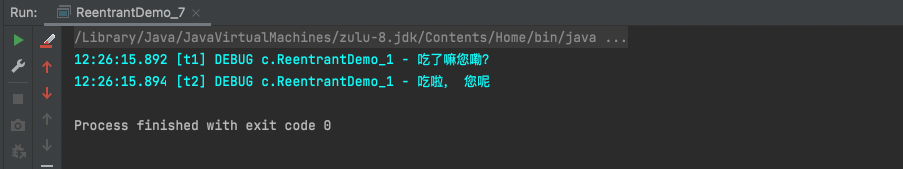

方法一 wait-notify

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示同步模式之顺序控制 wait-notify实现方式
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_1")
public class ReentrantDemo_7 {
    public static Object obj = new Object();
    static boolean t1Runned = false;

    public static void main(String[] args) {

        Thread t1 = new Thread(() -> {
            synchronized (obj) {
                log.debug("吃了嘛您嘞？");
                t1Runned = true;
                obj.notify();
            }
        }, "t1");

        Thread t2 = new Thread(() -> {
            synchronized (obj) {
                while (!t1Runned) {
                    try {
                        obj.wait();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }

                }
            }
            log.debug("吃啦， 您呢");
        }, "t2");
        t1.start();
        t2.start();

    }
}

方法一结果

方法二 ReentrantLock

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;

/**
 * @author Joshua.H.Brooks
 * @description 演示同步模式之顺序控制 ReentrantLock实现方式
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_1")
public class ReentrantDemo_8 {
    public static ReentrantLock lock = new ReentrantLock();
    static boolean t1Runned = false;
    static Condition con = lock.newCondition();

    public static void main(String[] args) {

        Thread t1 = new Thread(() -> {
            lock.lock();
            try {
                log.debug("吃了嘛您嘞？");
                t1Runned = true;
                con.signal();
            } finally {
                lock.unlock();
            }
        }, "t1");

        Thread t2 = new Thread(() -> {
            lock.lock();
            try {
                while (!t1Runned) {
                    try {
                        con.await();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
            } finally {
                lock.unlock();
            }
            log.debug("吃啦， 您呢");
        }, "t2");
        t1.start();
        t2.start();
    }
}

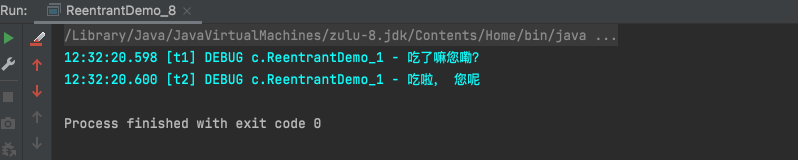

方法二结果

方法三 park-unpark

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.LockSupport;

/**
 * @author Joshua.H.Brooks
 * @description 演示同步模式之顺序控制 park-unpark实现方式
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_1")
public class ReentrantDemo_9 {
    public static void main(String[] args) {
        Thread t2 = new Thread(() -> {
            LockSupport.park();
            log.debug("吃啦， 您呢");
        }, "t2");
        Thread t1 = new Thread(() -> {
            log.debug("吃了嘛您嘞？");
            LockSupport.unpark(t2);

        }, "t1");
        t1.start();
        t2.start();
    }
}

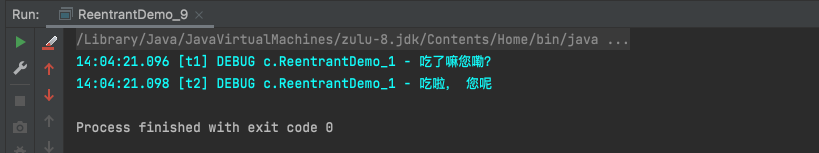

方法三结果

交替输出需求

需求：

Wait-Notify 实现

package com.joshua.reentrant8;

import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.LockSupport;

/**
 * 交替输出需求： t1线程打印a，t2线程打印b，t3线程打印c，依次交替各打印5次。即abcabcabcabcabc
 * @author Joshua.H.Brooks
 * @description  Wait-Notify 完成交替输出需求
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_10")
public class ReentrantDemo_10 {
    public static void main(String[] args) {
        WaitNotify wn = new WaitNotify(1, 5);
        new Thread(() -> {
            wn.print("a",1,2);
        }, "t1").start();
        new Thread(() -> {
            wn.print("b",2,3);
        }, "t2").start();
        new Thread(() -> {
            wn.print("c",3,1);
        }, "t3").start();
    }
}

class WaitNotify {
    private int flag;
    private int loopNumber;

    public WaitNotify(int flag, int loopNumber) {
        this.flag = flag;
        this.loopNumber = loopNumber;
    }

    /**
     *
     * a, 1, 2
     * b, 2, 3
     * c, 3, 1
     * @param str
     * @param waitFlag 当前等待标记，如果与flag一致，则打印，否则等待
     * @param nextFlag 下一个标记，
     *                 只要按照上面的顺序控制了顺序。
     */
    public void print(String str, int waitFlag, int nextFlag) {
        for (int i = 0; i < loopNumber; i++) {
            synchronized (this) {
                while (flag != waitFlag) {
                    try {
                        this.wait();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
                System.out.print(str);
                flag = nextFlag;
                this.notifyAll();
            }
        }

    }
}

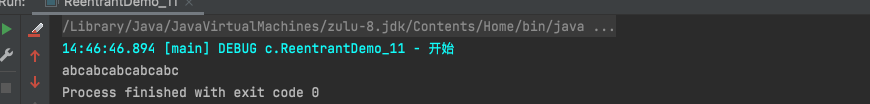

await-signal实现

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.ReentrantLock;

/**
 * 交替输出需求： t1线程打印a，t2线程打印b，t3线程打印c，依次交替各打印5次。即abcabcabcabcabc
 *
 * @author Joshua.H.Brooks
 * @description ReentrantLock 完成交替输出需求
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_11")
public class ReentrantDemo_11 {
    public static void main(String[] args) {
        AwaitSignal awaitSignal = new AwaitSignal(5);
        Condition a = awaitSignal.newCondition();
        Condition b = awaitSignal.newCondition();
        Condition c = awaitSignal.newCondition();

        new Thread(() -> {
            awaitSignal.print("a", a, b);
        }, "t1").start();

        new Thread(() -> {
            awaitSignal.print("b", b, c);
        }, "t2").start();

        new Thread(() -> {
            awaitSignal.print("c", c, a);
        }, "t3").start();
        //主线程控制从a开始所以先唤醒a
        Sleeper.sleep(1_000);
        awaitSignal.lock();
        try {
            log.debug("开始");
            a.signal();
        } finally {
            awaitSignal.unlock();
        }

    }

}

class AwaitSignal extends ReentrantLock {
    private int loopNumber;

    public AwaitSignal(int loopNumber) {
        this.loopNumber = loopNumber;
    }

    public void print(String str, Condition current, Condition next) {
        for (int i = 0; i < loopNumber; i++) {
            lock();
            try {
                //t1,t2,t3三个线程一进来都调用了await，否则下一轮没法唤醒
                current.await();
                System.out.print(str);
                next.signal();
            } catch (InterruptedException e) {
                e.printStackTrace();
            } finally {
                unlock();
            }
        }
    }
}

注意⚠️：体会为什么在try后第一行就current.await();

如果主线程唤醒的代码从a.signal();改成b.signal(); 则结果会变成bca连续五次：

park-unpark实现

package com.joshua.reentrant8;

import com.joshua.util.Sleeper;
import lombok.extern.slf4j.Slf4j;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.LockSupport;
import java.util.concurrent.locks.ReentrantLock;

/**
 * 交替输出需求： t1线程打印a，t2线程打印b，t3线程打印c，依次交替各打印5次。即abcabcabcabcabc
 *
 * @author Joshua.H.Brooks
 * @description ParkUnpark 完成交替输出需求
 * @date 2022-05-11 08:26
 */
@Slf4j(topic = "c.ReentrantDemo_12")
public class ReentrantDemo_12 {
    static Thread t1;
    static Thread t2;
    static Thread t3;
    public static void main(String[] args) {
        ParkUnpark pup = new ParkUnpark(5);
        t1= new Thread(() -> {
            pup.print("a",t2);
        }, "t1");

        t2= new Thread(() -> {
            pup.print("b",t3);
        }, "t2");

        t3= new Thread(() -> {
            pup.print("c",t1);
        }, "t3");

        t1.start();
        t2.start();
        t3.start();

        log.debug("开始");
        LockSupport.unpark(t1);
    }

}

class ParkUnpark{
    private int loopNumber;

    public ParkUnpark(int loopNumber) {
        this.loopNumber = loopNumber;
    }

    public void print(String str,Thread next){
        for (int i = 0; i < loopNumber; i++) {
            LockSupport.park();
            System.out.print(str);
            LockSupport.unpark(next);
        }
    }
}

可重入

定义

代码

测试

可打断

定义

代码

测试

锁超时

代码

测试
