Spring-Cloud-02-服务调用

Posted on Edited on In
Symbols count in article: 7.7k Reading time ≈ 7 mins.

SpringCloud-服务网关将学习讨论相关组件： Ribbon和OpenFeign 。 可以与传统RestTemplate做对比优劣。

Ribbon

Ribbon是什么

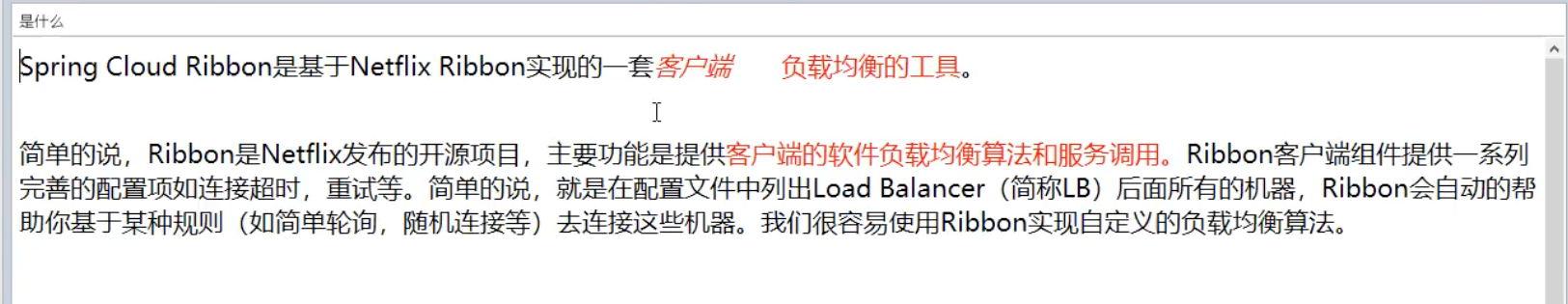

Ribbon定义

Ribbon本质

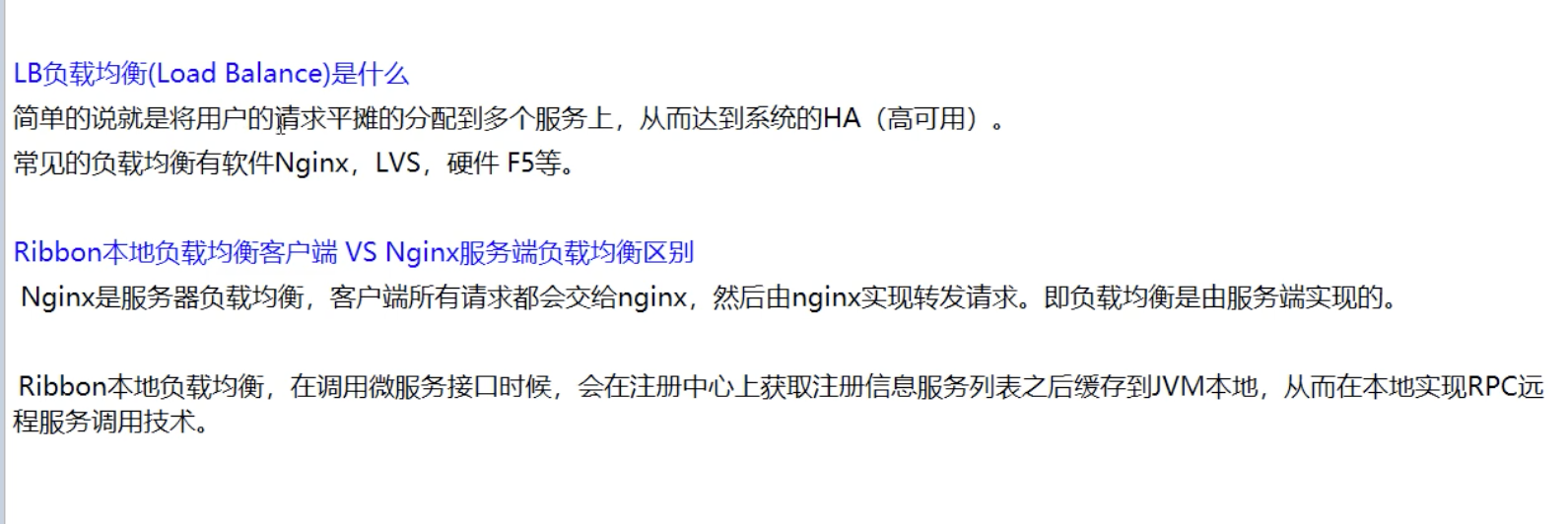

负载均衡

Ribbon模块现状

1
2
3
4
5
6
7
8
9
10
11
More specifically, here are the components of Ribbon and their level of attention by our teams:

ribbon-core: deployed at scale in production
ribbon-eureka: deployed at scale in production
ribbon-evcache: not used
ribbon-guice: not used
ribbon-httpclient: we use everything not under com.netflix.http4.ssl. Instead, we use an internal solution developed by our cloud security team
ribbon-loadbalancer: deployed at scale in production
ribbon-test: this is just an internal integration test suite
ribbon-transport: not used
ribbon: not used

Ribbon的核心组件IRule

IRule的具体实现类有如下七个:

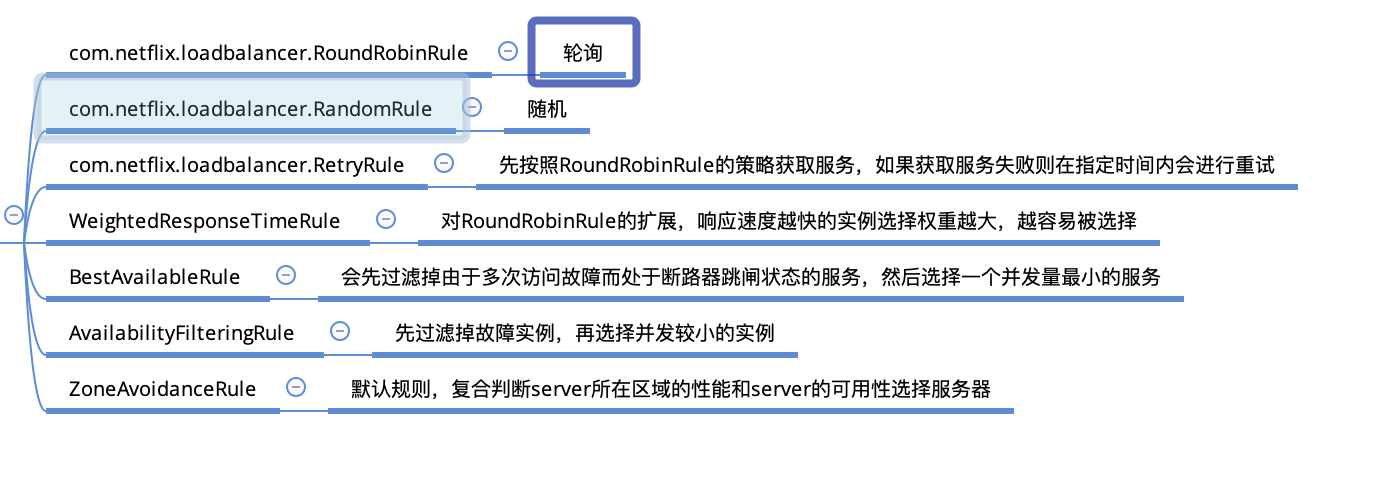

IRule实现类

IRule 配置细节

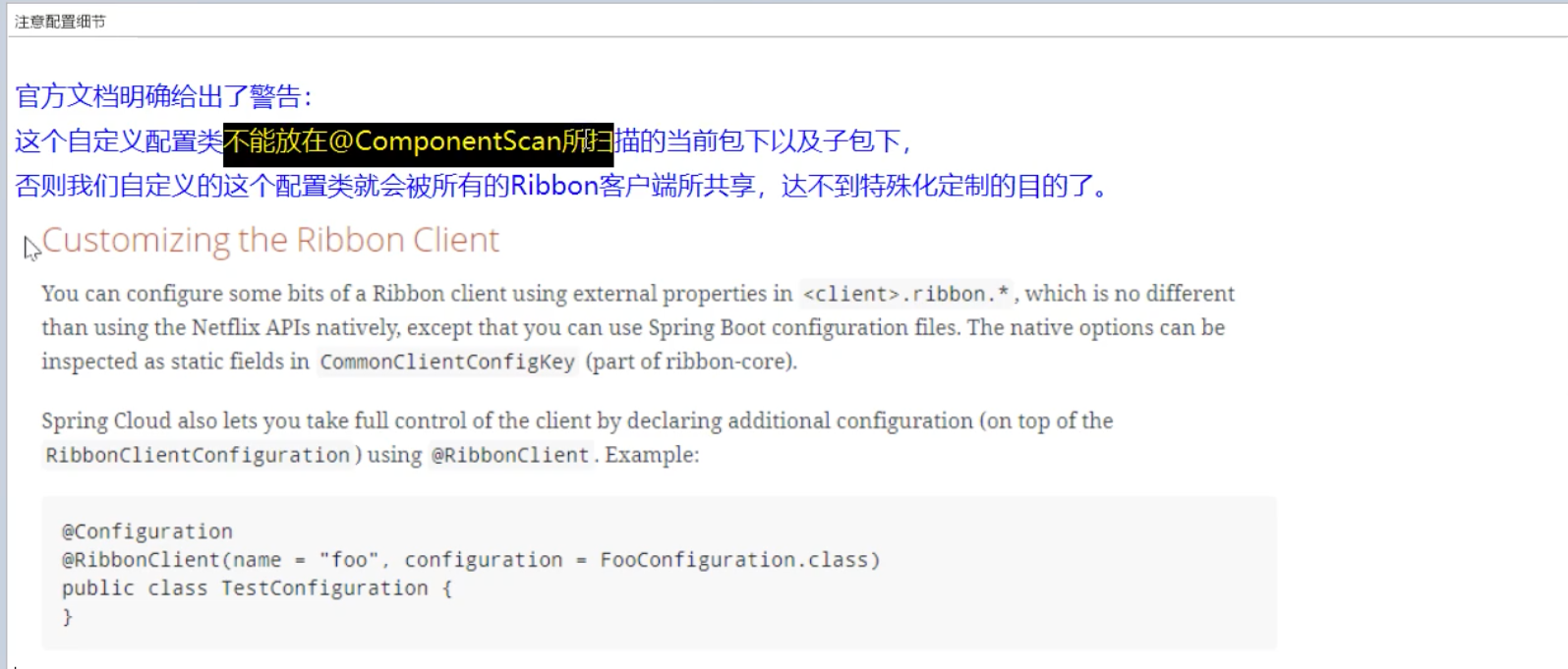

IRule配置细节

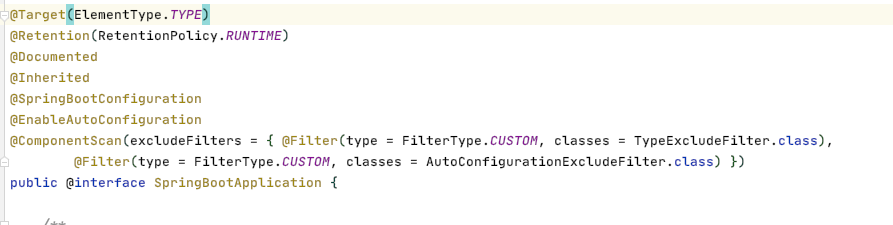

springbootapplication注解

*而主启动类上的@SpringBootApplication注解是被@ComponentScan修饰的, 也就是说, 不能与主启动类所在包同级或其中. *

IRule 配置

以cloud-consumer-order80 为例, 来掩饰IRule的个性化配置.

修改cloud-consumer-order80

新建MyselfRule类

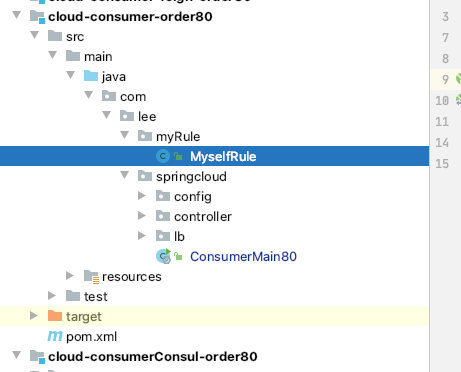

考虑到配置细节中提到的问题, 所以MyselfRule类所在包如下图所示

myRule包目录位置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
package com.lee.myRule;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RandomRule;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MyselfRule {
    @Bean
   public IRule myRule(){
        return new RandomRule();
    }
}

主启动类修改

在主启动类上添加注解: @RibbonClient, 并在该注解属性中配置为某个服务具体的轮巡策略

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
package com.lee.springcloud;

import com.lee.myRule.MyselfRule;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.ribbon.RibbonClient;

@SpringBootApplication
@EnableDiscoveryClient
@RibbonClient(name="CLOUD-PAYMENT-SERVICE",configuration = MyselfRule.class)  // 默认的是轮巡, 现在改成随机
public class ConsumerMain80 {
    public static void main(String[] args) {
        SpringApplication.run(ConsumerMain80.class);
    }
}

测试

启动cloud-consumer-order80 项目, 多次访问 http://localhost/c/get/1 会发现已经不是轮巡(交替从8001,8002提供服务), 而是随机出现.

仿写负载策略

根据轮巡策略的源码(RoundRobinRule), 仿写自己的轮巡策略并让其生效. 因为要用自己的 , 那么ribbon自带的轮巡就要先禁用

Step 1: 禁用ribbon自带的负载策略

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
package com.lee.springcloud.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationContextConfig {
    @Bean
    // @LoadBalanced //去掉ribbon官方的负载均衡注解使用自己的
    public RestTemplate getRestTemplate(){
        return new RestTemplate();
    }
}

RIBBON 的测试还没成功, 待后续继续测试添加笔记.

OpenFeign

Feign 是什么

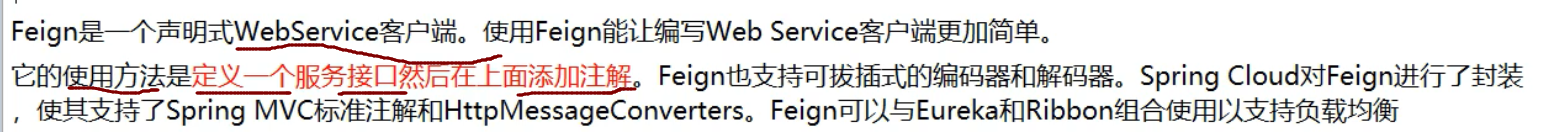

Feign

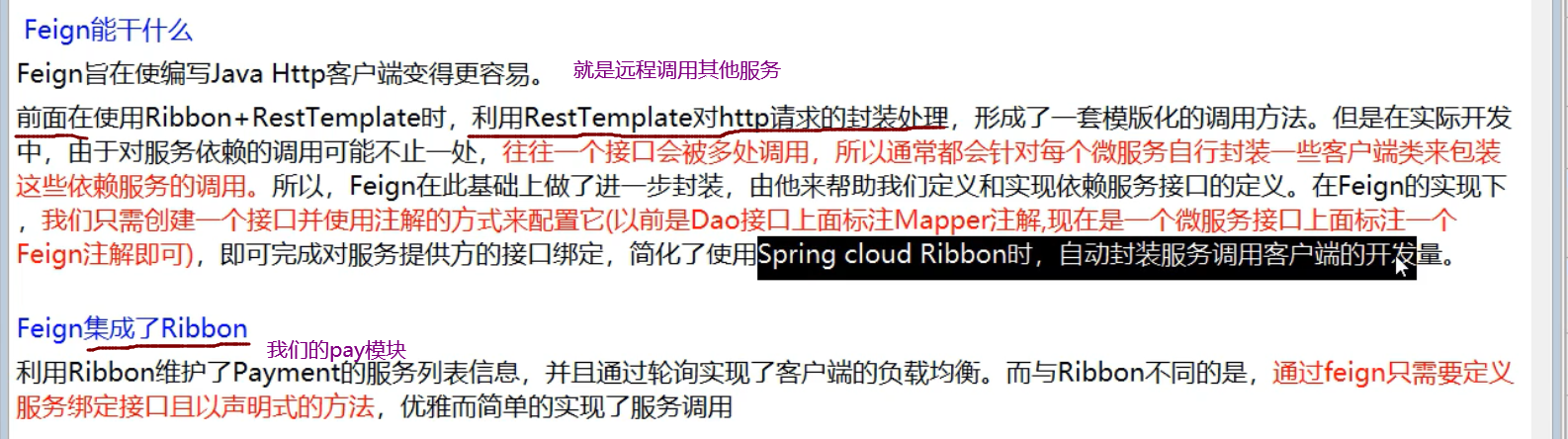

Feign 能干什么

Feign

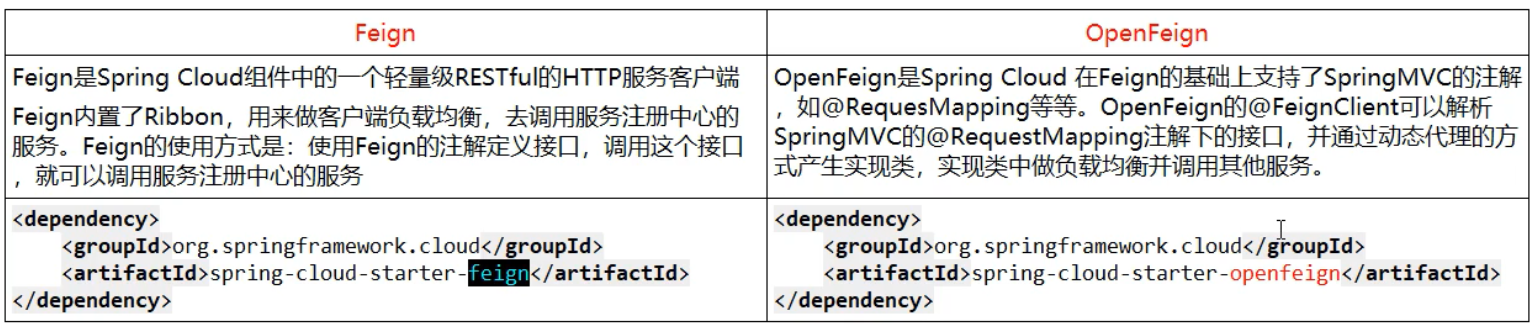

Feign & OpenFeign

Feign
Feign
Feign
Feign
Feign
Feign
Feign
Feign
Feign
Feign
Feign

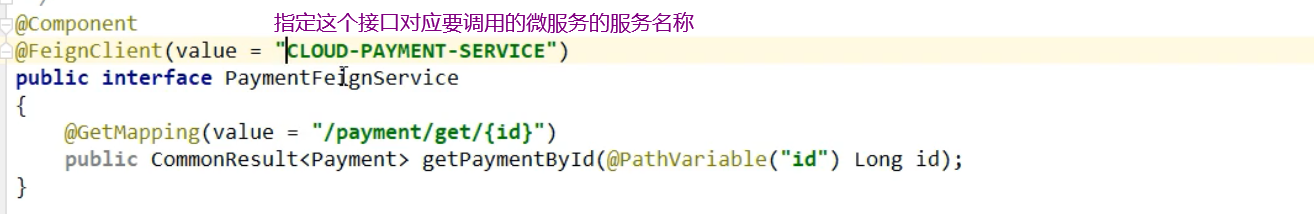

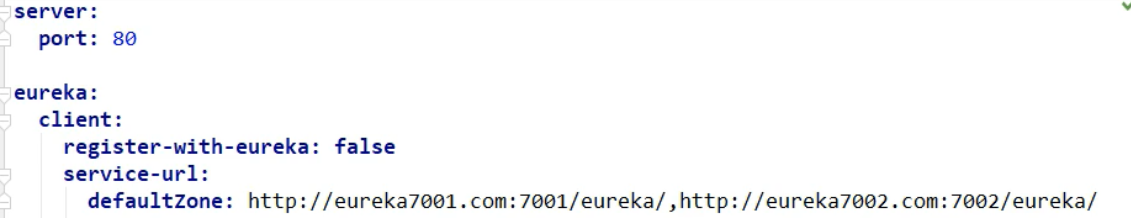

OpenFeign进行服务调用

新建cloud-consumer-feign-order80

写POM

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>CloudAll</artifactId>
        <groupId>com.lee</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-feign-order80</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.lee</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>javax.servlet</groupId>
                    <artifactId>servlet-api</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

建yml

1
2
3
4
5
6
7
8
9
10
11
12
13
server:
  port: 80

spring:
  application:
    name: cloud-order-service

eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka,http://eureka7002.com:7002/eureka
    register-with-eureka: true
    fetch-registry: true

主启动类

1
2
3
4
5
6
7
8
9
10
11
12
13
package com.lee.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.openfeign.EnableFeignClients;

@EnableFeignClients
@SpringBootApplication
public class FeignOrder80 {
    public static void main(String[] args) {
        SpringApplication.run(FeignOrder80.class,args);
    }
}

业务类

  1. 新建接口

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    package com.lee.springcloud.service;

    import com.lee.springcloud.entities.CommonResult;
    import com.lee.springcloud.entities.Payment;
    import org.springframework.cloud.openfeign.FeignClient;
    import org.springframework.stereotype.Component;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;

    @Component
    @FeignClient(value = "CLOUD-PAYMENT-SERVICE")
    public interface PaymentFeignService {   //在接口上添加对应的@FeignClient注解即可实现服务调用

        @GetMapping("/payment/get/{id}")
        public CommonResult<Payment> getPaymentById(@PathVariable("id") long id);
    }

  1. controller

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    package com.lee.springcloud.controller;

    import com.lee.springcloud.entities.CommonResult;
    import com.lee.springcloud.entities.Payment;
    import com.lee.springcloud.service.PaymentFeignService;
    import lombok.extern.slf4j.Slf4j;
    import org.springframework.web.bind.annotation.GetMapping;
    import org.springframework.web.bind.annotation.PathVariable;
    import org.springframework.web.bind.annotation.RestController;

    import javax.annotation.Resource;

    @Slf4j
    @RestController
    public class OrderFeignController {
        @Resource
        PaymentFeignService paymentFeignService;

        @GetMapping("/feign/payment/get/{id}")
        public CommonResult<Payment> getPaymentById(@PathVariable("id") long id){
            return paymentFeignService.getPaymentById(id);
        }
    }

测试

依次启动: 2个eureka集群7001/7002, 2个微服务payment8001/8002 和 Feign-Order-80, 然后访问消费者中暴露的请求路径:

1
http://localhost/consumer/payment/get/1

可以看到结果如下:

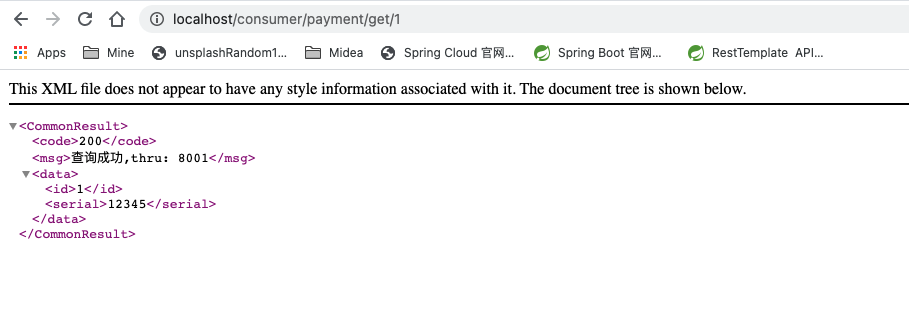

Feign测试结果

OpenFeign 超时问题

演示

  1. 服务提供方8001故意写暂停程序:

    1
    2
    3
    4
    5
    @GetMapping(value = "/payment/feign/timeout")
    public String paymentFeignTimeout(){
    	try { TimeUnit.SECONDS.sleep(5); }catch (Exception e) {e.printStackTrace();}
    	return serverPort;
    }

  2. 服务消费方80添加超时方法PaymentFeignService:

1
2
@GetMapping("/consumer/payment/feign/timeout")
public String paymentFeignTimeout();

  1. 服务消费方80添加超时方法OrderFeignController:

    1
    2
    3
    4
    @GetMapping("/consumer/payment/feign/timeout")
    public String paymentFeignTimeout(){
        return paymentFeignService.paymentFeignTimeout();
    }

  1. 测试访问:

    1
    http://localhost/consumer/payment/feign/timeout

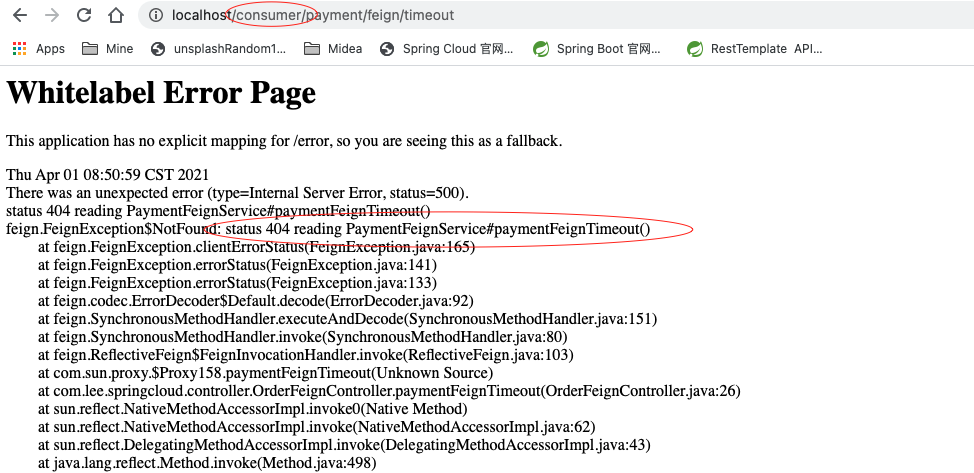

    发现报错如下:

    openFeign超时

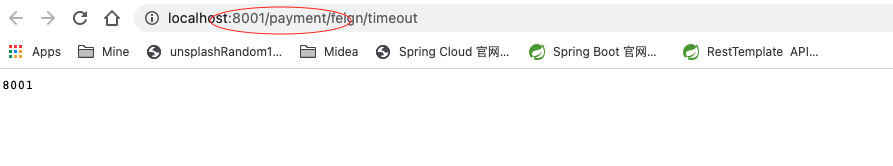

而直接访问8001服务提供者则一切正常

openFeign超时

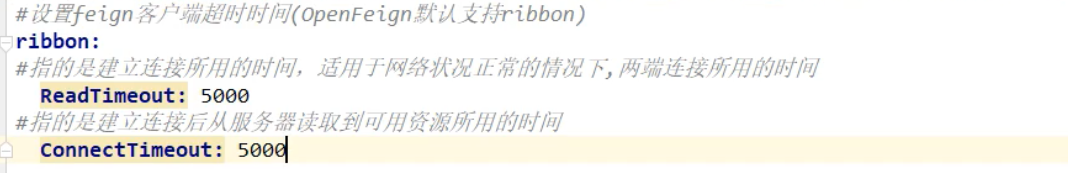

原因是openFeign客户端默认是等待1秒钟, 所以当耗时超过1秒是就会报错如上. 那如果实际业务处理时间确实需要比默认要长时,则需要个性化配置feign的等待时长.
